产品特性:功率计 | 是否进口:否 | 产地:日本 |
加工定制:否 | 类型:多功能功率测量仪表 | 品牌:Anritsu 安立 |
型号:ML2437A | 可测电压范围:214V | 可测电流范围:60A |
规格:432 | 数量:50 | 封装:好 |
颜色:白色 |
本公司长期出售二手仪器:成色好、性能好、现货出售、
客人请注意标价均不为实价
购买还可免费保修3个月,可开票。

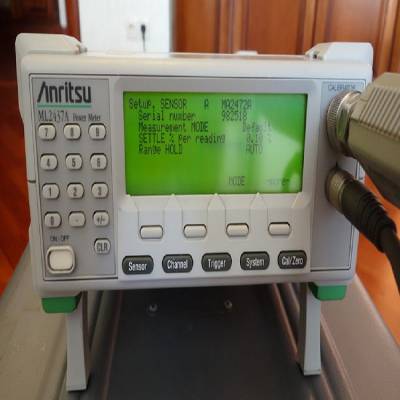

Anritsu ML2437A Power Meter, Single input
The ML2437A and ML2438A Power Meters combine the advantages of thermal meter accuracy, diode meter speed, and peak power meter display graphics. The result is a single instrument that samples at more than 35K per second and achieves 90 dB dynamic range with a single sensor. These meters include graphics display capability as a standard feature. The ruggedized housing and optional high-capacity NiMH battery bring laboratory quality accuracy to field service applications. ML2437A has one input, and ML2438A has two inputs.
This product family includes the ML2407A and ML2408A power meters, which were designed to measure the peak and average power of an IS-95 CDMA signal. ML2407A and ML2408A have a wider bandwidth (1.4MHz) than the ML2437A/38A power meters and have been designed for a standard 1.2288 Mc/s IS-95 signal channel. The MA2468B and MA2469C sensors have been specifically designed to go with ML2407A and ML2408A for this IS-95 application. ML2407A has one input, and ML2408A has two inputs.
Applications needing a wider bandwidth power should also consider the ML2487A/ML2488A power meters.
Features
Highly accurate burst measurement function
Frequency analog display
Pass/fail evaluation of specified frequency range using template function
Supplied with:
Power cord for destination
One 1.5m sensor cord per meter input
Operation Manual
Certificate of Calibration, also included with sensors.
